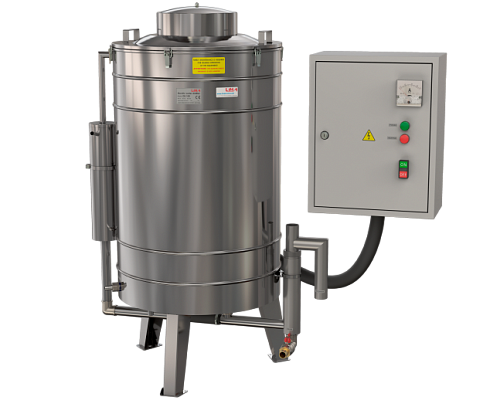

DE-100 Water distiller

DE-100 Water distiller
DE-100 Water distiller
Get a quote
DE-100 Water distiller
$0
$0
Added
Article no.:
Available
Get a quote
Assignment - distilled water production;
Capacity, l/h - 100.0;
Electrical conductivity of product water - 3.0-3.5 µs/cm ;
Quality of product water - Type III;
All specifications

Special features

- Nodes and parts being in contact with steam and distilled water are made of AISI 321 stainless steel and other materials which do not affect the quality of product water.

- Reliability even in case of deposits formation on heating elements (electrodes): electrodes do not burn out, like tubular heating elements due to formation of excess deposits on the surface.

- Tubular condenser.

- Demountable design of the condensation chamber.

- Possibility of separate water feeding for evaporation and cooling, if the distiller is connected to water recirculation system (if available at the enterprise).

- Spare set of phase electrodes, spare protective electrode and distillate drain tube are included into the kit.

- Distillation process, power and water supply disrupt automatically if centralized water supply stops and water level in the evaporation chamber drops below the allowable level.

- Level of water in the distiller fed for evaporation is maintained automatically.


Assignment
distilled water production
Capacity, l/h
100.0
Electrical conductivity of product water
3.0-3.5 µs/cm
Quality of product water
Type III
Product water temperature, °С
50
Current type, frequency, voltage
three-phase AC, 50 Hz, 380 V
Power consumption
60.0 kVA
Source water consumption, l/h (at water t from 10 to 12 °С at pressure from 0.2 to 0.4 MPa)
750
Source water pressure, MPa
0.1 – 0.4
Dimensions (LxWxH), mm
810×630×1270
Type of mounting
Floor mounting
Weight with control unit, kg
81
Warranty period, months from the date of sale
12
Heating elements
electrodes
Factor of water purification from radionuclides, min
4000
Dimensions of control unit (LxWxH), mm
400×220×500
Service life, years
8 years min
