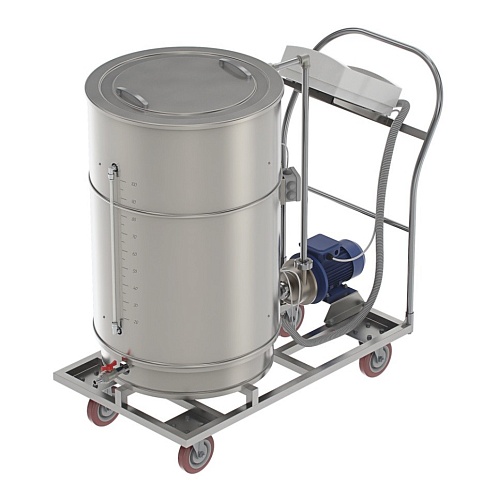

TC-30 Thermal tanks for sterile solutions

Get a quote

Added

Article no.:

Available

Get a quote

Assignment - collection, storage and dispensing of water obtained by various purification means;

Current type, frequency, voltage - three-phase AC, 50 Hz, 380 V;

Power consumption - 6 kVA;

Dimensions (LxWxH), mm - 1015×510×1000;

All specifications

Special features

The thermal tank is equipped with:

- bactericidal air filter,

- heat insulation casing,

- water level gauge,

- heating elements,

- temperature measurement and control device,

- sprinkler,

- timer.

- Surface is protected from chips, scratches and cracks.

- Nodes and parts being in contact with steam and distilled water are made of AISI 321 stainless steel and other materials which do not affect the quality of product water.

- Automatic switching on/off of electric heaters.

- Automatic switching on/off of the pump.

Automatic switching on/off of the connected Livam water distiller.

Assignment

collection, storage and dispensing of water obtained by various purification means

Current type, frequency, voltage

three-phase AC, 50 Hz, 380 V

Power consumption

6 kVA

Dimensions (LxWxH), mm

1015×510×1000

Type of mounting

floor mounting (platform trolley with wheels is in the kit)

Weight with control unit, kg

Warranty period, months from the date of sale

Heating elements

Tubular electric heater 1.8 kW (3 pcs.)

Service life, years

8 years min

Quality of stored purified water

Type II, III

Water temperature maintained in the tank, °С

from 85 to 95

Control circuit voltage

12V or 220V

Body material

stainless steel

Capacity, l
